PP Plated Filter Cartridge

About PP Plated Filter Cartridge

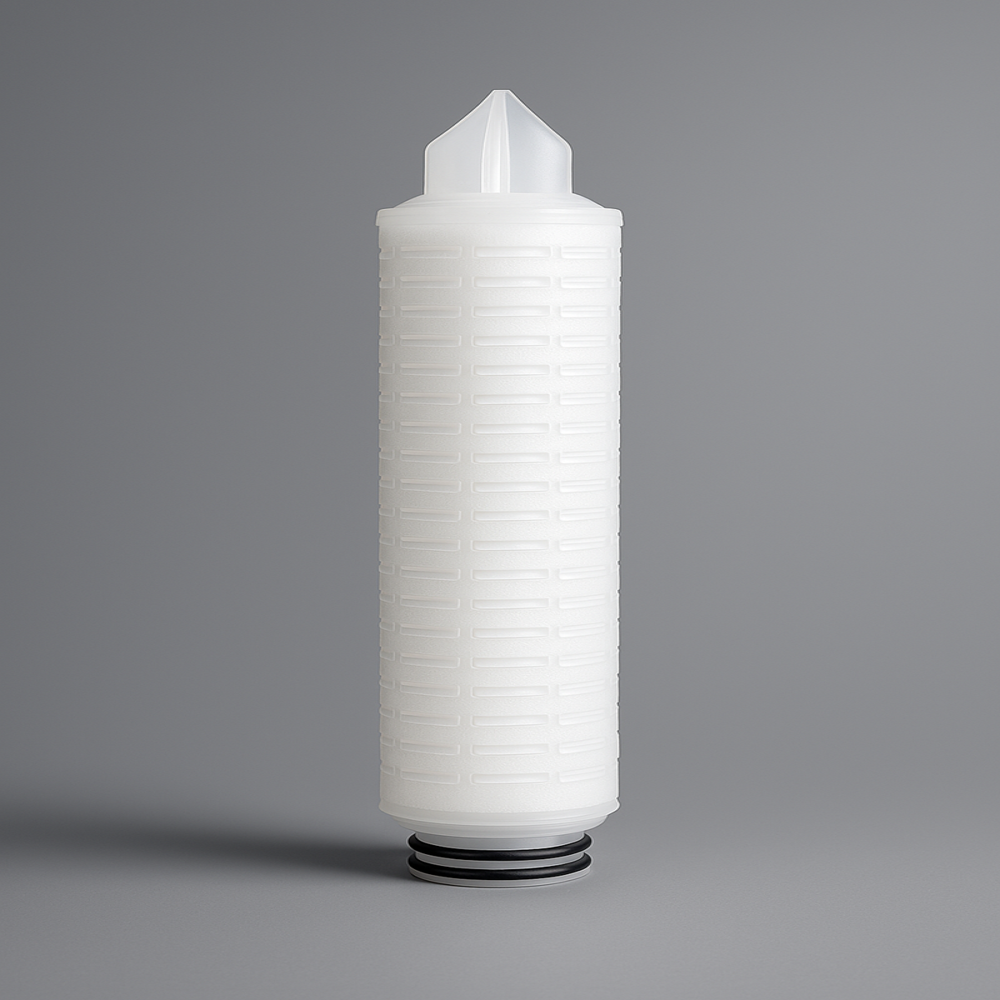

Product Name: Polypropylene (PP) Pleated Filter Cartridge
Type: Depth-type pleated filter
Material:

• Filter Media: 100% Polypropylene Microfiber (Pleated)

• Core & End Caps: Polypropylene

• Support Layers: Polypropylene (inner & outer)

Micron Rating:

• Available in: 0.2, 0.45, 1, 3, 5, 10, 20, 30, 50, 70 micron

Sizes/Lengths:

• 5", 10", 20", 30", and 40" (Standard lengths)

• Outer Diameter: 63 mm (standard), customizable

• Inner Diameter: 28 mm or 30 mm

End Connection Types:

• DOE (Double Open End)

• SOE (Single Open End)

• 222/fin, 222/flat, 226/fin, 226/flat with or without O-rings

• Customized end caps available

Seal Materials (O-Rings/Gaskets):

• Silicone, EPDM, Nitrile (Buna-N), Viton, Teflon-encapsulated Viton

Operating Parameters:

• Maximum Operating Temperature: 80C (depending on pressure)

• Maximum Differential Pressure: 4 bar @ 25C

• Recommended Change-out Differential Pressure: 2.5 bar

Features:

• High surface area for extended service life

• Low pressure drop, high dirt holding capacity

• Broad chemical compatibility

• Free of adhesives and binders

• FDA compliant material (upon request)

Applications:

• RO Pre-filtration

• Pharmaceuticals and API Filtration

• Food and Beverage Industry

• Chemicals and Petrochemicals

• Electronics and Semiconductor

• Water and Wastewater Treatment

Certifications:

• ISO 9001:2015

• FDA 21 CFR compliance (on request)

Packaging:

• Individually poly-bagged, bulk carton packing available
